1 Reviews
5
All reviews from trusted customers
R
ra******ie
15 Oct 2024
The thermal camera is excellent (and was the primary reason I bought it),providing very good accuracy when used on circuit boards. The multimeter also functions well, with a quick response time. The touchscreen is resistive but still quite responsive and accurate.
Show translation
Description
Product information:
ET13S,ET13SPRO
Display screen: 2.8 inches, 320 × 480 resolution

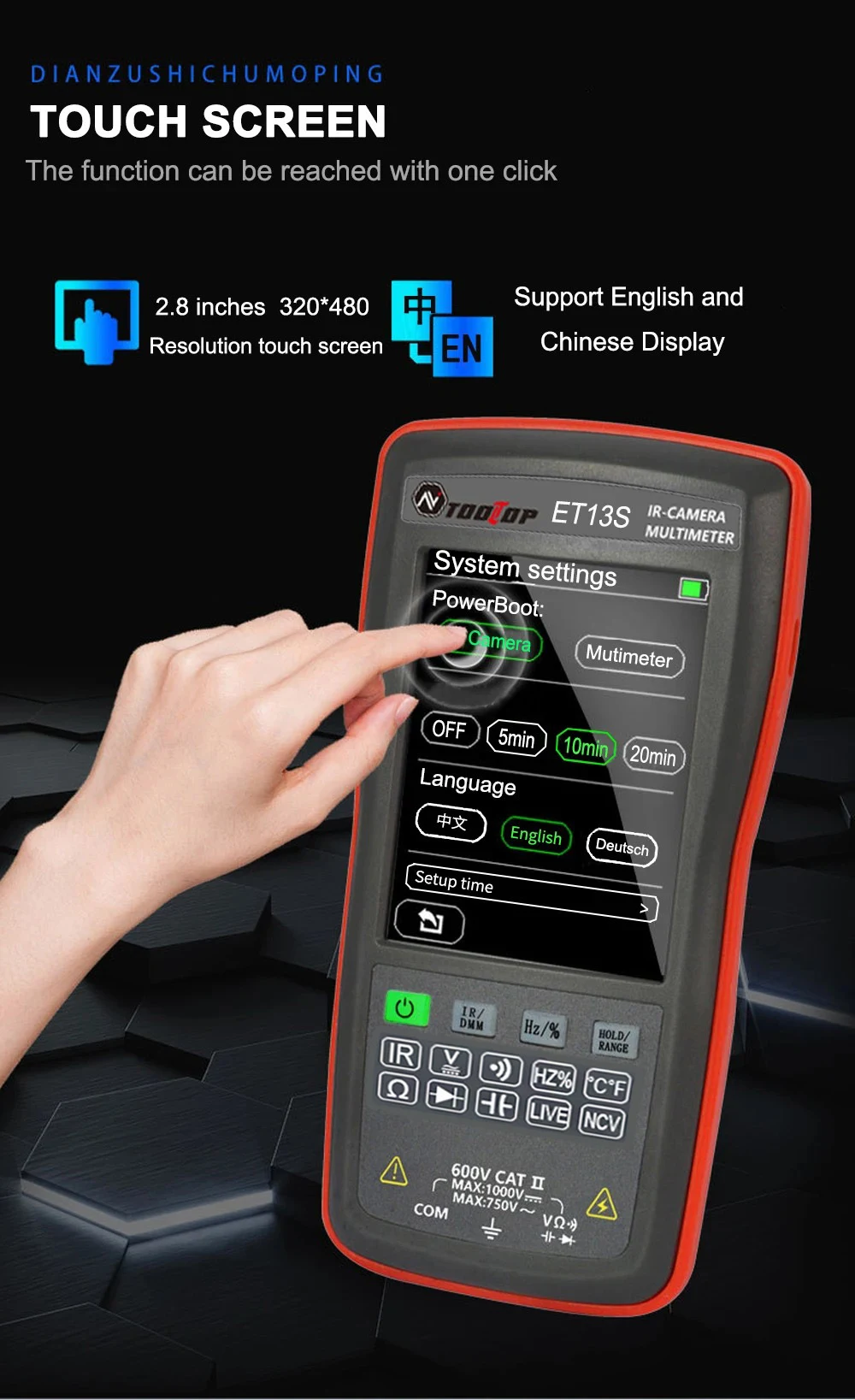

Touch screen: resistive touch screen
USB interface: type-c USB
Storage capacity: 3.5MB
Image Format: BMP file
Battery: Built-in lithium battery
Storage Temperature:-20~60 ℃(-4 ~ 140F)
Operating temperature: 0~50 ℃ (32 ~ 122F)
Working humidity:<85% RH (non-condensing)
Product Size: 134mm * 69mm * 25mm
Sensors：Vanadium oxide(VOx)
lmage capture frequency：20Hz

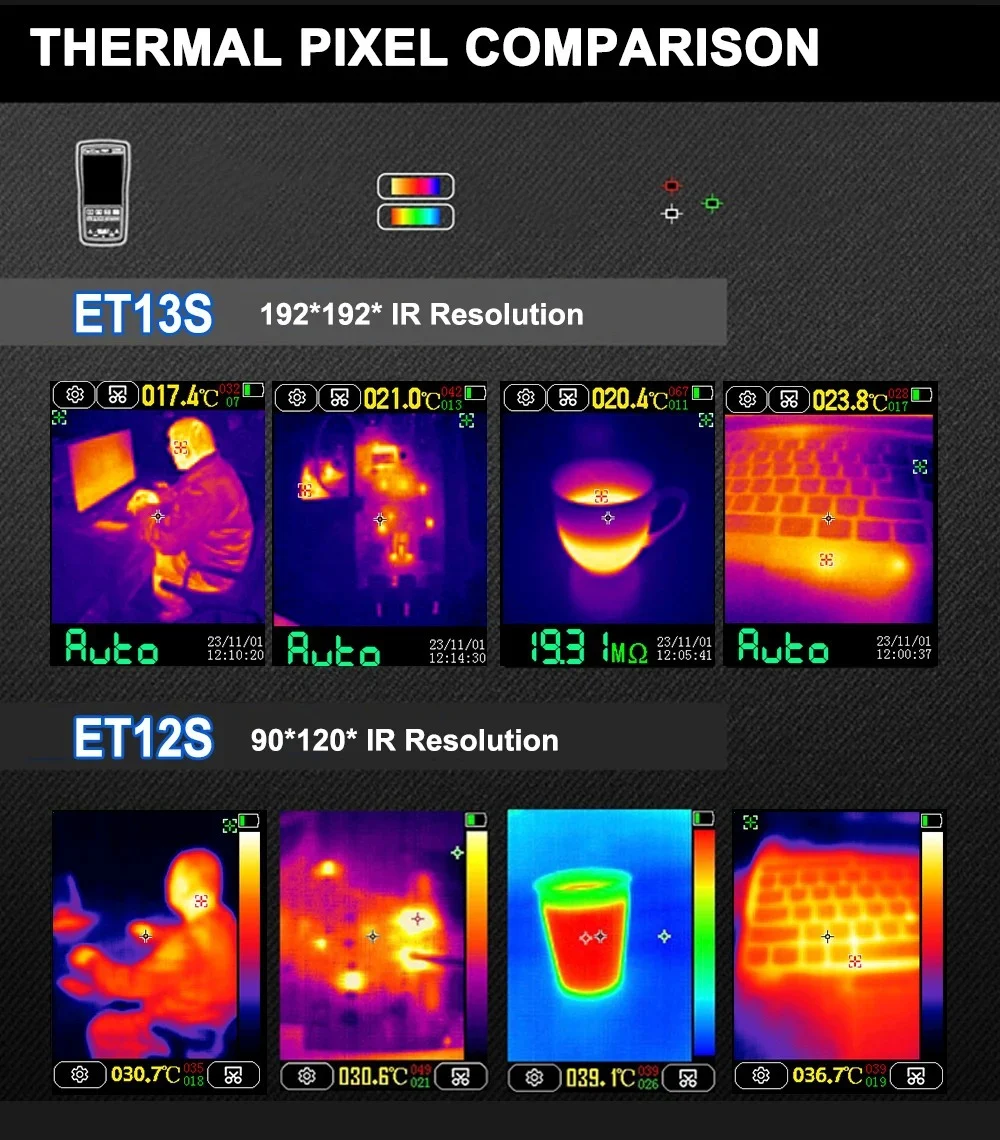

Thermal imaging pixel：192*192
Display image resolution：240*240
Field of view (Fov)：50.0°(H)x 50°(v)/72.1°(D)
Emissivity：0.1-0.99 is tunable and 0.95 is the default
Measurement temperature range：-20℃ ~ +550℃
Mode：Automatic gain
Packing list:
Thermal imaging resolution instrument * 1
Product Image:
